Askeri Araçlar

[KanyaK]

Wyrzutnia 2P29 = Scud-A yani gerçek ismiyle R-11 Füze Rampası

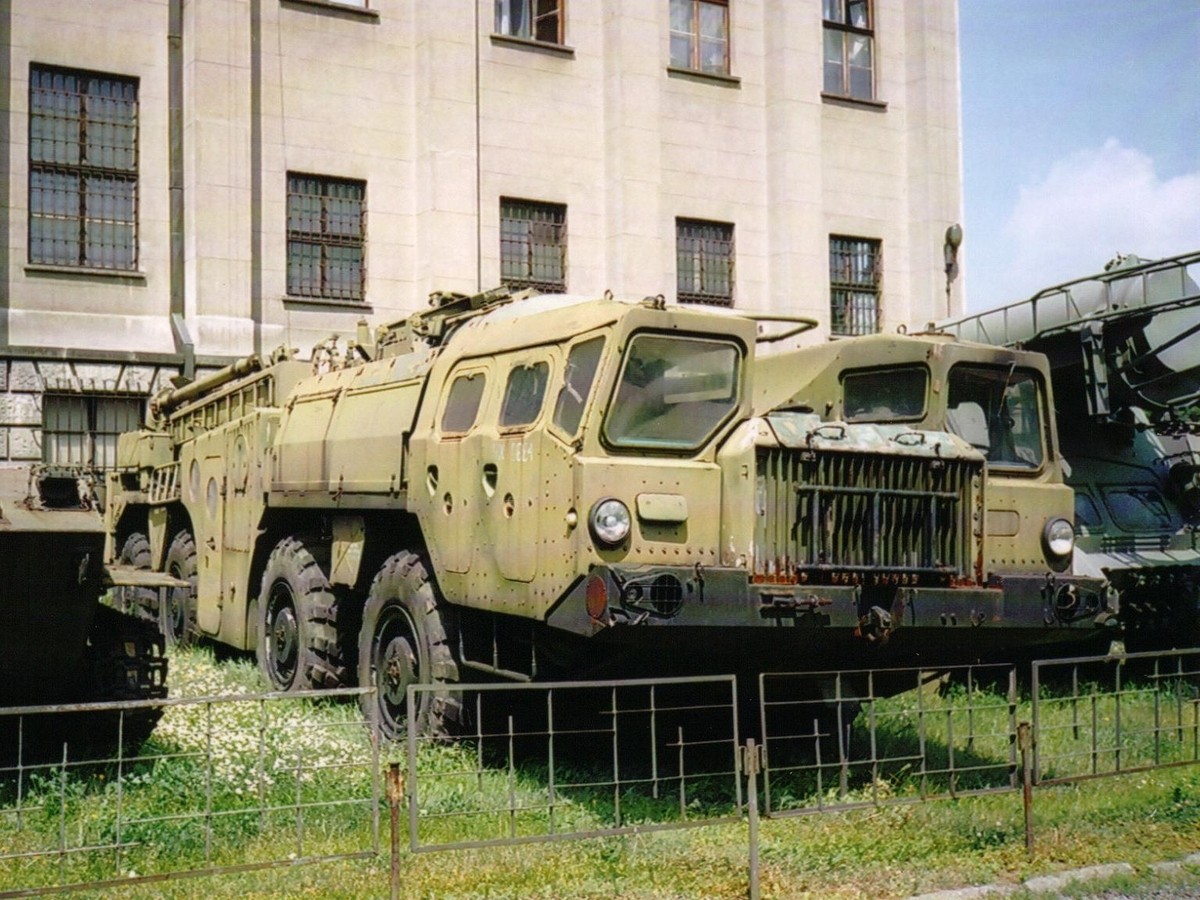

Wyrzutnia 9M117 = Bence bu daha karizmatik, Scud-B gerçek ismiyle r-14 füze rampası

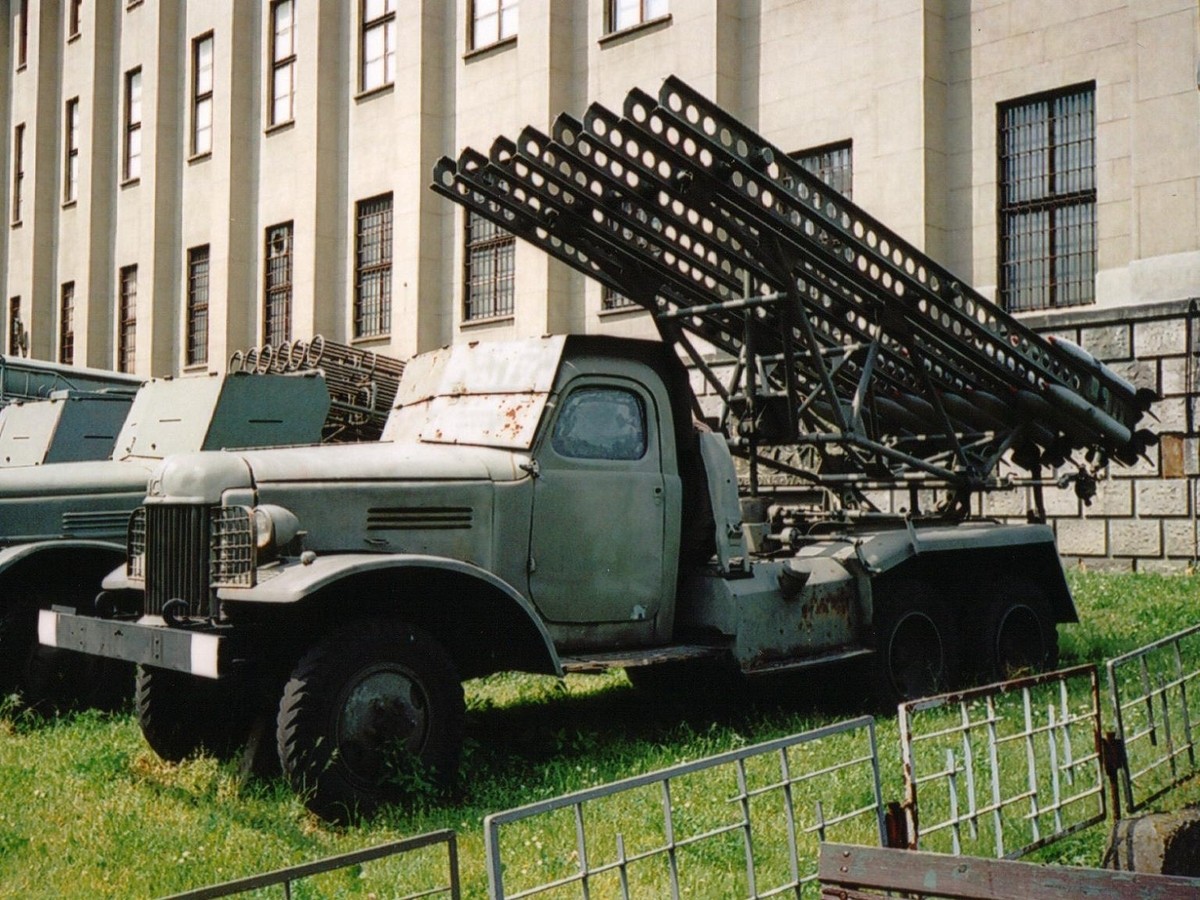

BM-13N "Katiusza" = 132 mm roketatar

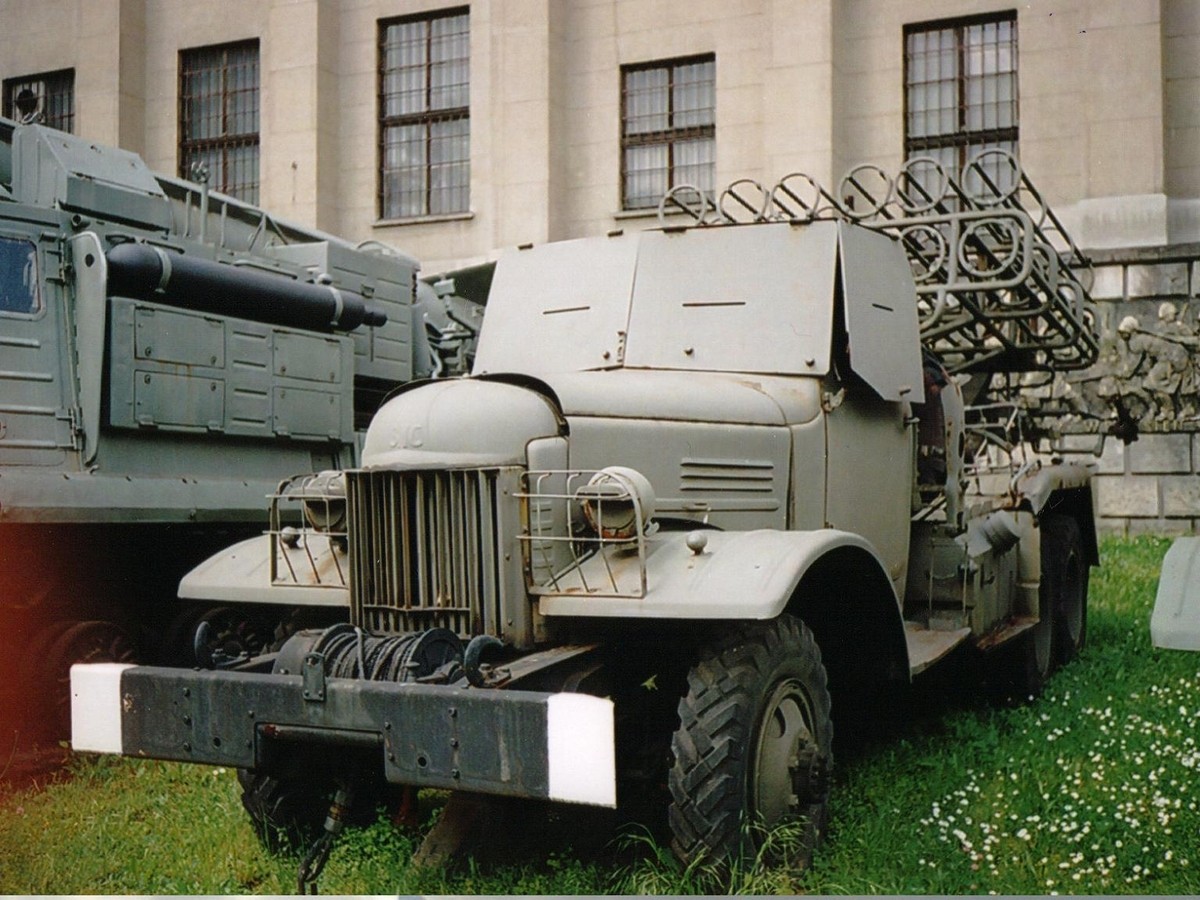

BM-24-12 = 240 mm roketatar



[KanyaK]

Ynt: Askeri Araçlar

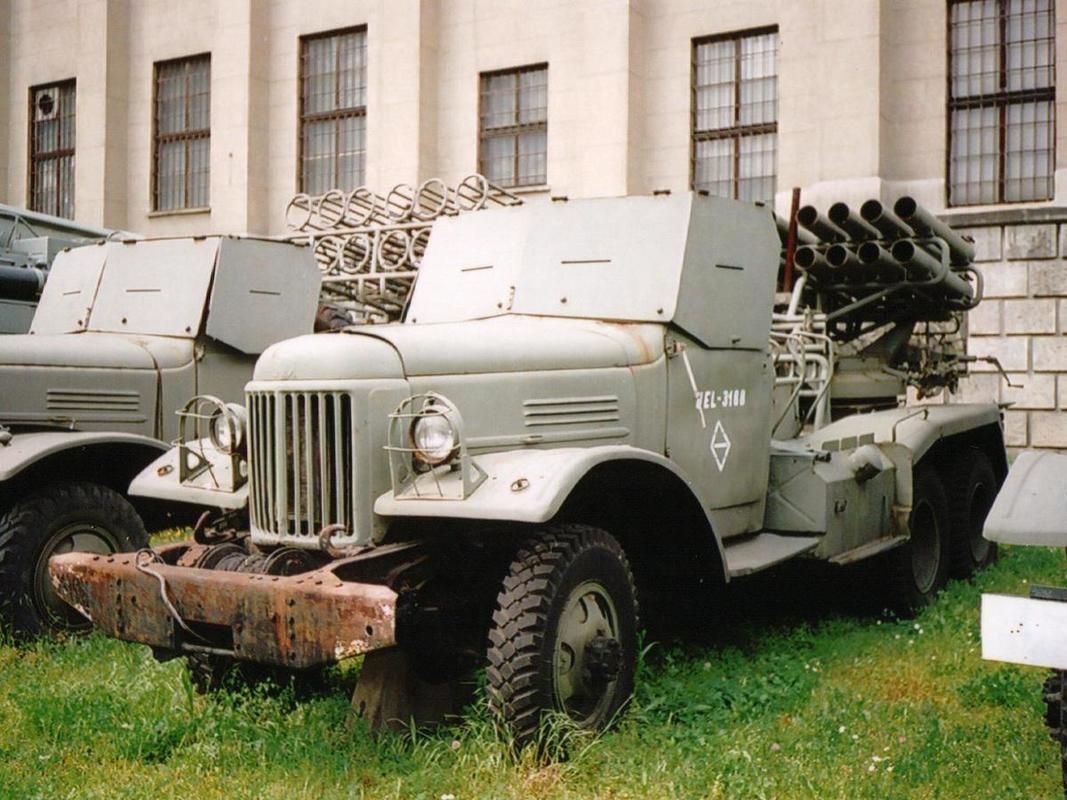

BM-14-16 = 140 mm roketatar

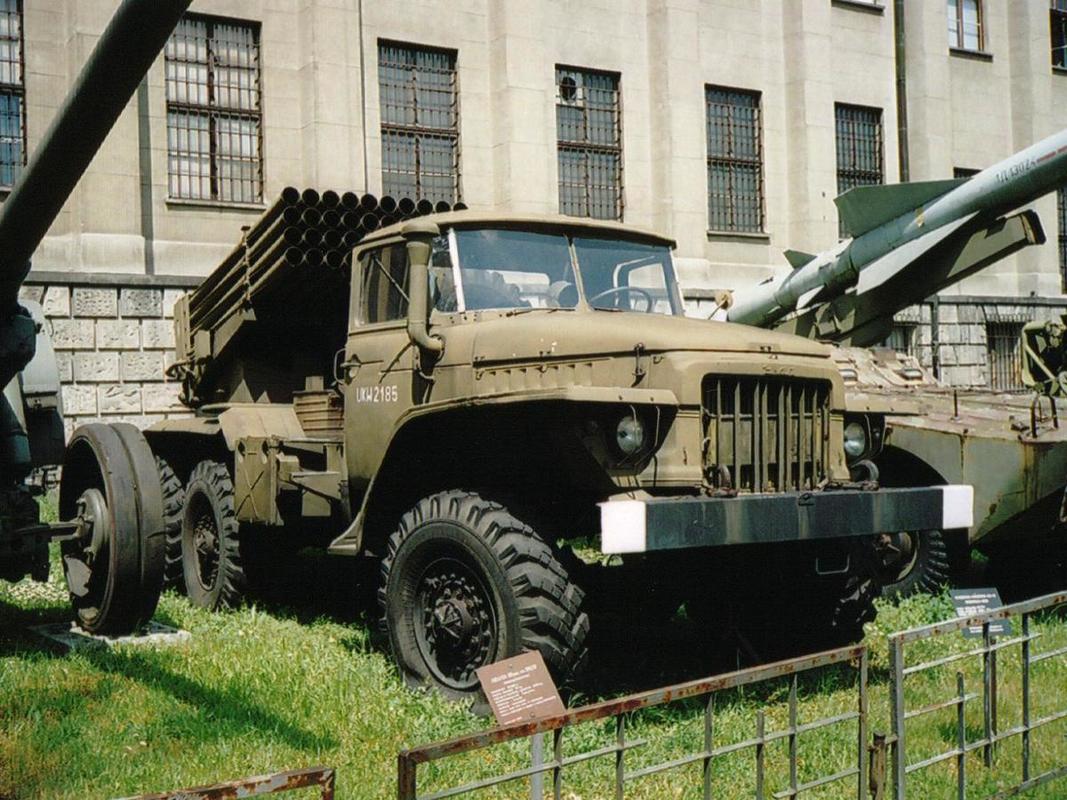

BM-21 = Stara-944 roketatar

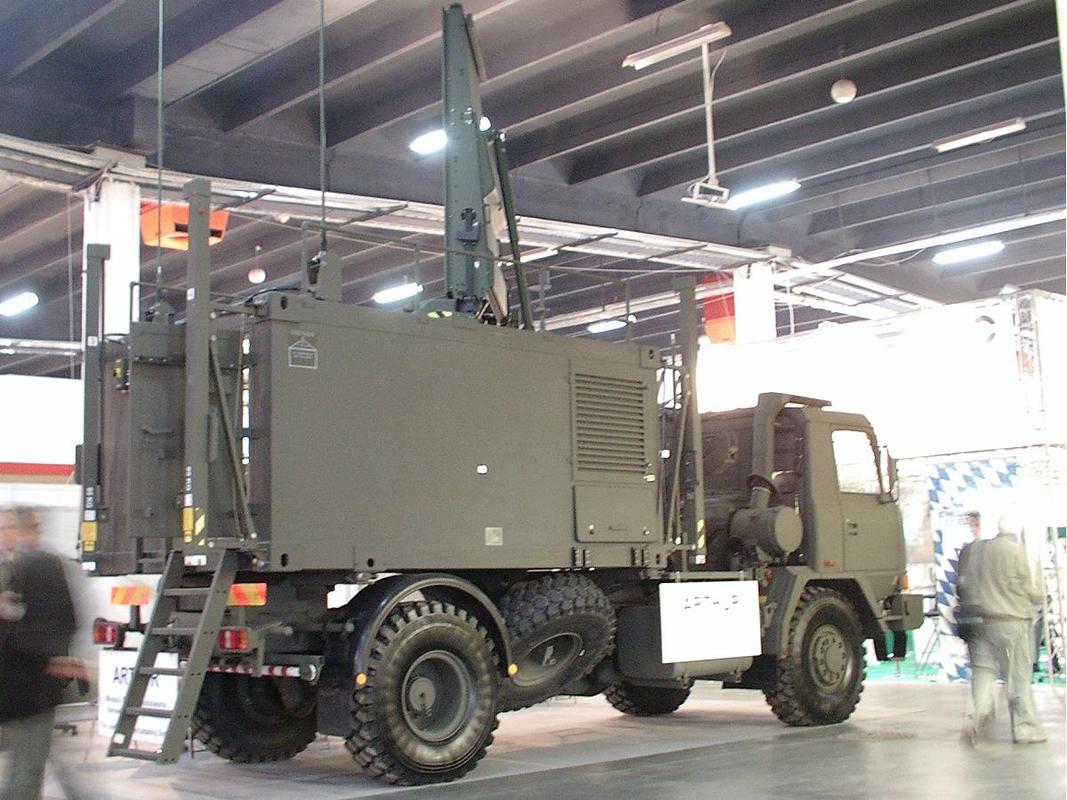

ARTHUR model radar

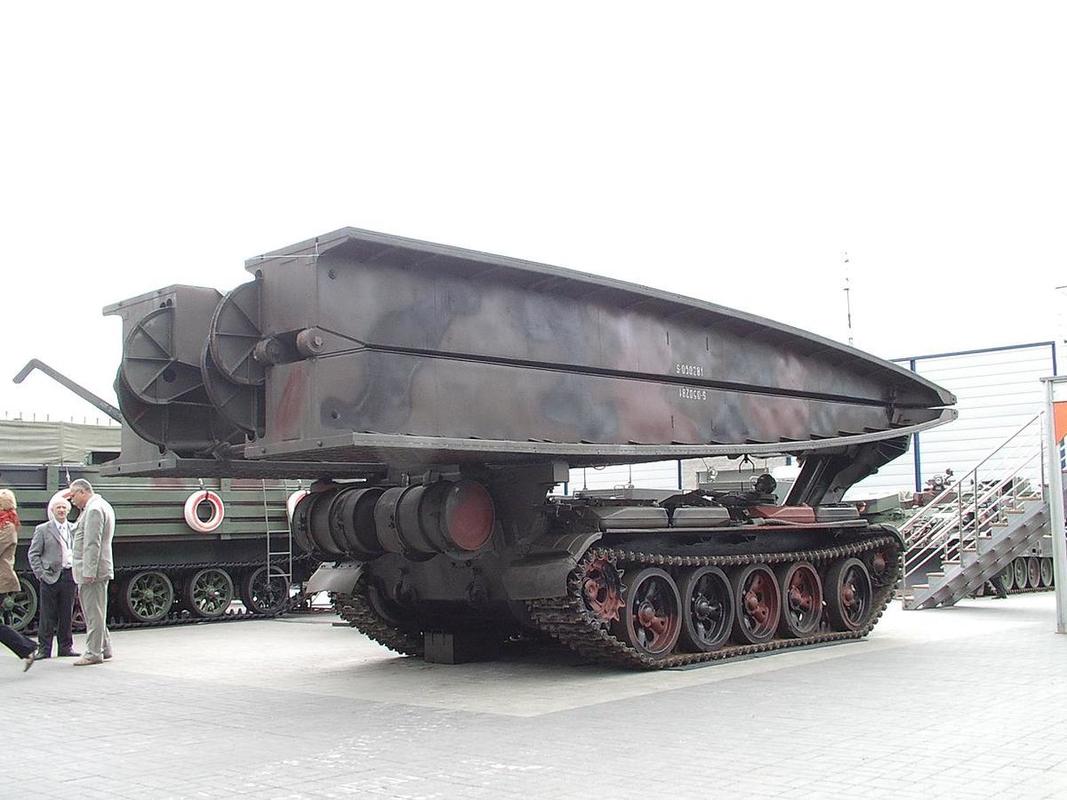

BLG-67 = İstihkamcıların vazgeçilmezi mobil köprü

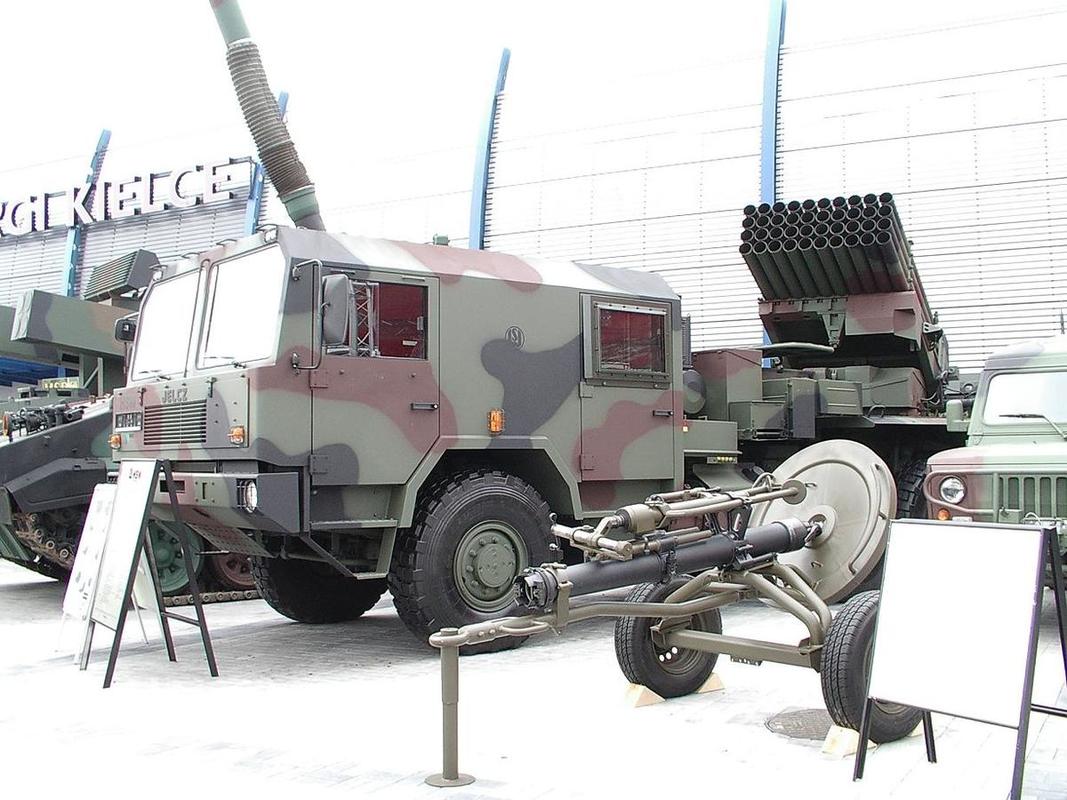

BM-21 = Stara 1466 roketatar



[KanyaK]

Ynt: Askeri Araçlar

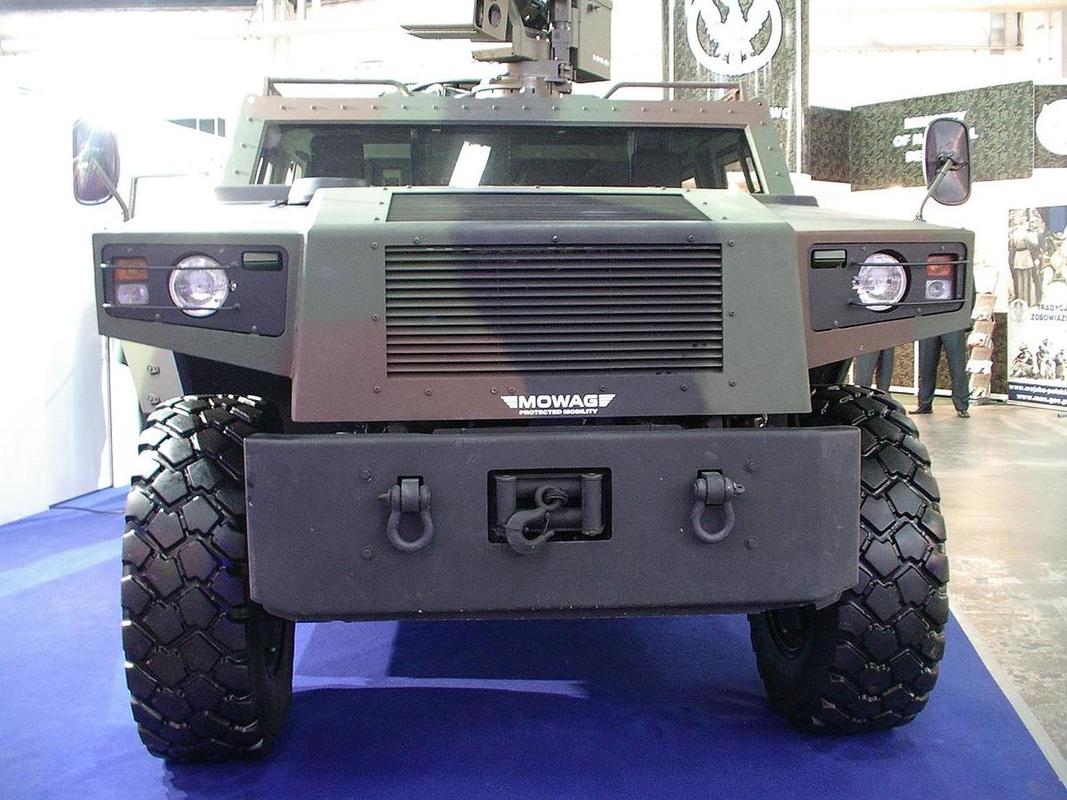

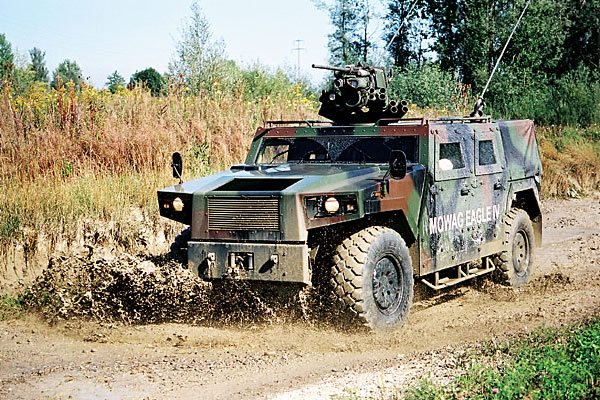

Eagle IV = İsviçrenin Hummer'ı



[KanyaK]

Ynt: Askeri Araçlar

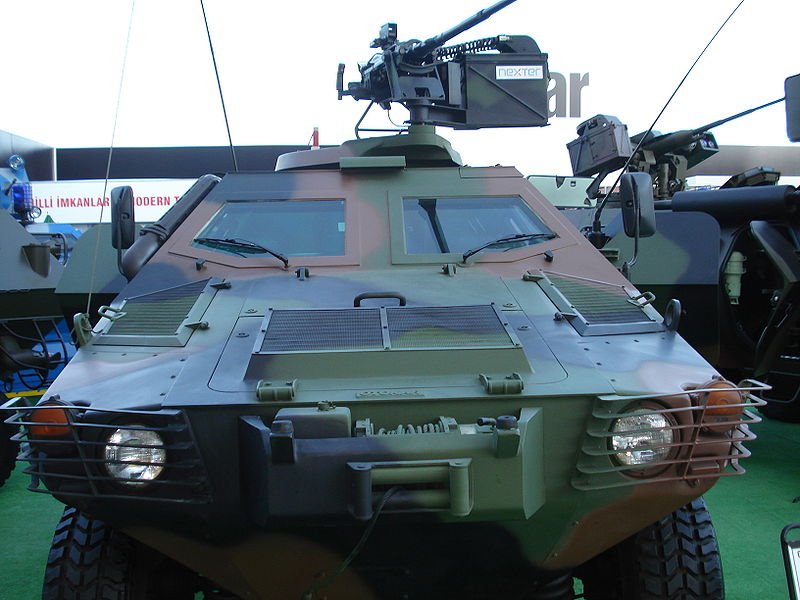

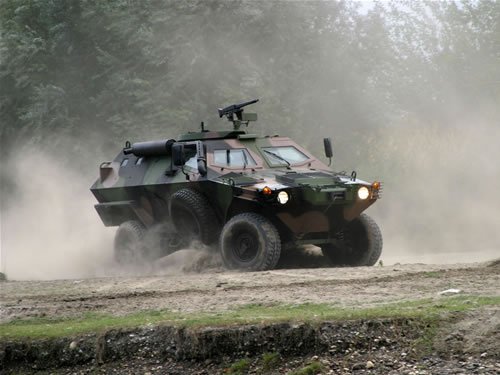

Otokar COBRA gözbebeğimiz

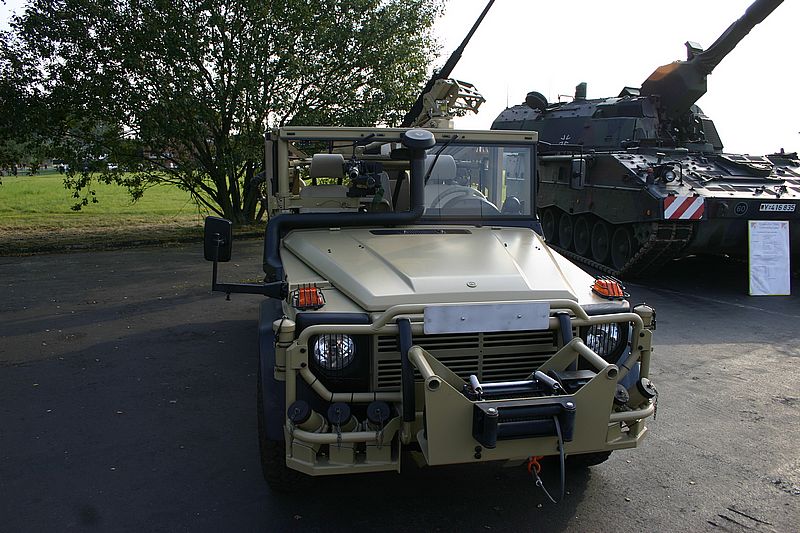

AGF Serval

PR-11



[KanyaK]

Ynt: Askeri Araçlar

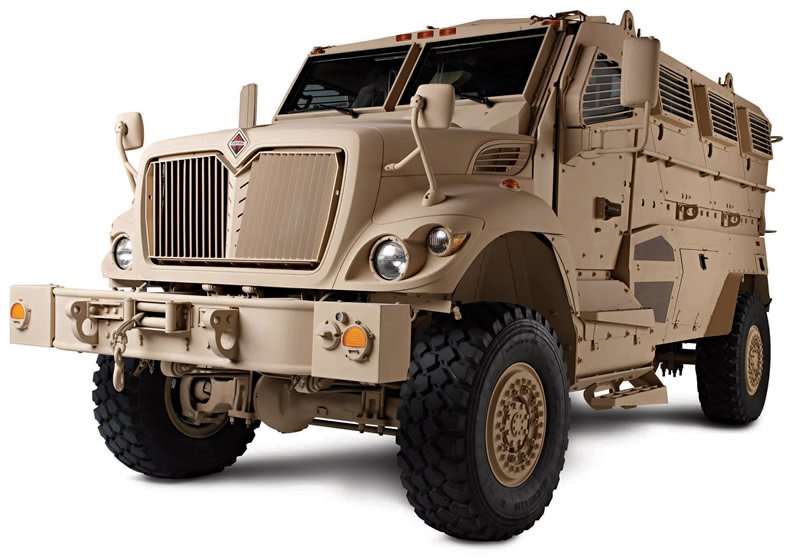

Navistar MRAP

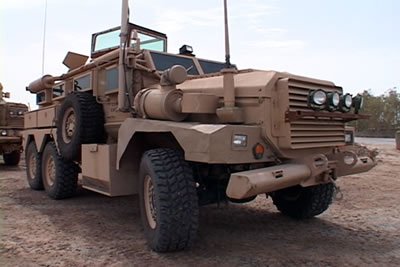

Cougar MRAP

Caiman MRAP

Golan MRAP



[KanyaK]

Ynt: Askeri Araçlar

M-PAV 2 (M1025A2)

Gaz Vodnik

M561 Goat

Bunu bilmiyorum



[yücel]

Ynt: Askeri Araçlar

son resim harika bugyy olmasın



[KanyaK]

Ynt: Askeri Araçlar

Evet buggy'dir kesin

http://www.russiantruck.co.uk/gallery.html birde bu siteyi buldum.

Özellikle Nadir abinin incelemesi lazım bence Satılık kısmı oldukça ilginç

http://www.russiantruck.co.uk/trucks.html

Sitenin alt kısmında yazan bu yazı, kısaca herşeyi özetliyor bence



[KanyaK]

Ynt: Askeri Araçlar

MAZ537

Fuel type: Diesel
Gross vehicle weight: 24,450kgs
Payload: 50,000kgs
Length: 8.5 metres
Width: 2.9 metres (overall)
Height: 3.2 metres
Wheel base: mm
Min ground clearance: 800mm
Maximum speed: 60 kph
Fuel consumption: 1 - 3 MPG
Transmission: 3 Speed semi with, low and high
Ratio box: Yes, high and low, air operated
8x8 activation: Selectable 8x8, solenoid control
Axle type: Hypoid type
Wheel size: 24.00 x 20.00
Tyre inflation: No
Suspension: Front two axles torsion bar, with two large shocks, rear fixed transverse axle.
Brakes: Air over hydraulic system,
Engine type: V55 type, V12 580BHP 38,000 cc
Bore: mm
Compression ratio:
BHP: 580 BHP
Torque: 2420 Lbs/ft
Governed: Inline oil lub, Helix type
Voltage: 24 volts
PTO: Yes,
Heating: Yes,
Air filtration: No
Aux power take off: Yes
Winch: Yes 30mm cable
Gradient climb: 60%



[KanyaK]

Ynt: Askeri Araçlar

Uaz469

Fuel type: Petrol
Gross vehicle weight: 1,450kgs
Payload: 700kgs
Length: metres
Width: metres (overall)
Height: metres
Wheel base: mm
Min ground clearance: 300mm
Maximum speed: 90 kph
Fuel consumption: 19 - 21 MPG
Transmission: Manual
Ratio box: Yes, high and low, lever operated
4x4 activation: Selectable 4x4, lever
Axle type: Hypoid type
Wheel size:
Tyre inflation: No
Suspension:
Brakes: Air over hydraulic system,
Engine type: V55 type, V12 580BHP 38,000 cc
Bore: mm
Compression ratio:
BHP: 580 BHP
Torque: 2420 Lbs/ft
Governed: Inline oil lub, Helix type
Voltage: 24 volts
PTO: Yes,
Heating: Yes,
Air filtration: No
Aux power take off: Yes
Winch: No
Gradient climb: 60%



[KanyaK]

Ynt: Askeri Araçlar

Tatra 813 V12

Fuel type: Diesel
Gross vehicle weight: 11,450kgs
Payload: 5000kgs
Length: 8.5 metres
Width: 2.5 metres (overall)
Height: 3.3 metres
Wheel base: 3975mm
Min ground clearance: 380mm
Maximum speed: 90 kph
Fuel consumption: N/A
Transmission: 5 Speed manual, low first
Ratio box: Yes, high and low, lever operated
6x6 activation: Selectable 6x6, solenoid control
Axle type: Hypoid front and rear
Wheel size: 16.00 x 20.00
Tyre inflation: Yes, remote inside cab.
Suspension: Front leaf spring, rear floating axles and leaf springs.
Brakes: Air system,
Engine type: Tatra air cooled V12 Diesel
Bore: N/A
Compression ratio: N/A
BHP: --- BHP
Torque: --- Lbs/ft
Governed: N/A
Voltage: 24 volts
PTO: Yes,
Heating: Yes,
Air filtration: Yes
Aux power take off: Yes
Winch: N/A
Gradient climb: 60%



[KanyaK]

Ynt: Askeri Araçlar

Ural 4320 V8



[KanyaK]

Ynt: Askeri Araçlar

Kraz 255/6

Fuel type: Diesel
Gross vehicle weight: 19,675kgs
Payload: 9,000
Length: 9.6metres
Width: 2.75metres (overall)
Height: 3.5metres
Wheel base: 5.3m
Min ground clearance: 360mm
Maximum speed: 71 kph
Fuel consumption: 40 litres / 100km
Transmission: Manual
Ratio box: Yes, high and low, lever operated
6x6 activation: Selectable 6x6 (lever only 255)
Axle type: Double reduction, 8.2:1 ratio
Wheel size: 12.00 x 20 255 23.00 x 20
Tyre inflation: 256 no, 255 yes
Suspension: Rear bogie, walking beam, leaf springs with 6 torque rods.
Brakes: Full air system,
Engine type: YaMZ 238 V8 Diesel, 14.8litre
Bore: 130mm x 140mm
Compression ratio: 16.5:1
BHP: 238 BHP
Torque: Unknown but a hell of a lot Lbs/ft
Governed: Inline oil lub, Helix type
Voltage: 24 volts
PTO: Yes,
Heating: Yes,
Air filtration: No
Aux power take off: Yes
Winch: 256 no, 255 yes
Gradient climb: 47%



[KanyaK]

Ynt: Askeri Araçlar

Zil135 or Baz135 Frog 7 Launcher

Fuel type: Petrol or Multi fuel (see FAQ).
Gross vehicle weight: 13,800kgs
Length: 10 metres
Width: 2.9 metres
Height: 2.6 metres
Wheel base: mm
Min ground clearance: 600mm
Maximum speed: 75 kph
Fuel consumption: 96ltr / 100 km
Transmission: 5 Speed manual
Ratio box: Yes, high and low
8x8 activation: Continuos 8x8
Axle type: All linked, one engine per side
Wheel size: 12.00 x 24
Tyre inflation: Yes
Suspension: Front and rear, torsion bar, centre fixed
Brakes: Air over hydraulic
Engine type: 2 x Zil375 7,000cc
Bore: mm
Compression ratio: 6.5:1
BHP: 2x 180 @ 3,100 rpm
Voltage: 24 volts
PTO: Yes,
Heating: Yes,
Air filtration: No,
Aux power take off: Generator + Air
Winch: No



[KanyaK]

Ynt: Askeri Araçlar

KRUG, SSRT/ZRP

Combat weight: 50,500 kg
Unladen weight: 50,500 kg
Power to weight ratio: 12.89HP/tonne
Ground track pressure: 0.91 kg/cm2
Length: Eye watering 9.5m
Width: 3.27m
Height: 3.20m
Ground clearance: 425mm
Actual track width: 3.14m
Contact track length: 4.53m
Max speed road: 50km/h
Max speed water: N/A
Fuel capacity: 812litres
Fuel range: 460km
Fuel consumption: 185 ltrs/ 100 kms
Amphibious: No
Engine: V-55 type, V12 Diesel
BHP: 720 at 2,000 rpm
Transmission: Manual
Gears: 5 forward and 1 reverse
Suspension: Torsion bar
Smoke screen system: No
Trench jumping: 3.2m
Armament: Radar
Side slope: 35%



[KanyaK]

Ynt: Askeri Araçlar

http://www.mv-restoration.com/mv_restoration02f_013.htm

Burada da eski askeri araçlar modifiye ediliyor.
